Shelf Angle Replacement Services in the Chicago Area
At Corona Craft Restoration, we specialize in providing premier shelf angle replacement services for commercial and residential properties across the Chicago area.
With a commitment to craftsmanship, safety, and reliability, we are the trusted partner for building managers, condominium associations, and historical property owners who need expert contractor work done right. Our team brings the same level of precision to shelf angle replacements as we do to every other service we offer, from terracotta facade repair and tuckpointing to full flashing system installation.
What is Shelf Angle Replacement?

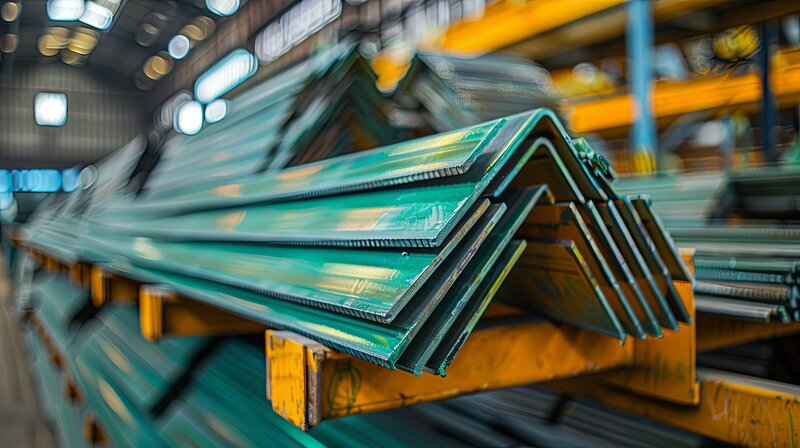

Shelf angles, also called relieving angles, are structural steel elements embedded in masonry buildings that support the weight of the facade at each floor level. They act as load-bearing brackets, transferring the weight of the cladding, whether brick, terracotta, limestone, or concrete, back to the building's structural frame rather than letting it accumulate down the height of the wall.
Exposure to moisture, road salt, and Chicago's extreme freeze-thaw cycles causes shelf angles to corrode over time. As rust develops, the steel expands and can crack or displace the surrounding masonry. Left unaddressed, this deterioration progresses from a maintenance issue into a structural safety hazard. Shelf angle replacement involves carefully removing damaged or corroded angles, repairing or rebuilding the adjacent masonry, and installing new high-quality steel angles properly coated to resist future corrosion.
Why Shelf Angle Condition Matters
Most building owners don't think about shelf angles until something goes wrong. Because these elements are hidden behind the facade, deterioration often goes undetected until it's caused significant damage. Rust staining, horizontal cracking in mortar joints, brick or terracotta units that are shifting, and spalled masonry near floor lines are all signs that shelf angles may be failing.
The shelf angle system also works in close coordination with other parts of your building envelope. Properly sealed caulking joints at horizontal shelf angle locations help keep water away from the steel. Well-installed flashing systems ensure that any water that does get in is directed out rather than pooling against the metal.
Every project starts with a thorough inspection of the facade. We identify locations and extent of corrosion, assess the condition of the surrounding masonry, and document related damage.
Inspection and Assessment
The deteriorated shelf angles are removed and the building structure is cleaned and prepped for the new installation. Any related damage is addressed at this stage.
Angle Removal and Structural Prep
We carefully remove the masonry units in the affected areas, whether brick, terracotta, limestone, or other cladding, taking care to salvage original units where possible.
Facade Opening and Masonry Removal
Our Shelf Angle Replacement Process
New shelf angles are fabricated to match the required dimensions and load specifications using high-quality, corrosion-resistant steel. Angles are anchored securely to the building structure in accordance with engineering specifications.
New Angle Fabrication and Installation
Before the facade is rebuilt, proper flashing systems are installed at the shelf angle location. This step is critical and is often skipped by less experienced contractors. We don't cut corners here.
Flashing and Waterproofing
The facade masonry is rebuilt using matching materials, and all joints are properly pointed and caulked at the horizontal movement joint directly above the shelf angle.
Masonry Rebuild and Caulking
Once work is complete, we inspect the repaired areas and clean the facade. Our masonry cleaning services can address any staining or construction residue on the surrounding facade.
Final Inspection and Cleaning
Why Choose Corona Craft Restoration?
Signs Your Building Needs Tuckpointing
We've completed shelf angle projects across a wide range of property types, from mid-rise residential buildings to large commercial high-rises, working closely with structural engineers when required. Read more about our team.
Commitment to Safety
Shelf angle work often involves working at height. We adhere to strict safety protocols on every project, protecting both our crew and the building's occupants.
Reliable Project Delivery
Our track record of delivering high-quality results on time and within budget keeps clients coming back. See our project gallery for examples of completed work.
1. Enhanced Safety
2. Increased Longevity
3. Improved Aesthetic Appeal
4. Compliance with Building Codes
Replacing deteriorated shelf angles offers numerous advantages that go beyond merely restoring structural integrity. Here are some key benefits to replacing shelf angle with Corona Craft Restoration:
Enhanced Safety
Replacing failing shelf angles eliminates the risk of masonry displacement or falling debris, protecting building occupants and pedestrians below.
Back to all
Increased Longevity
New shelf angles provide robust support and prevent compounding damage. Combined with well-maintained tuckpointing, caulking, and flashing systems, they extend the life of the entire building envelope.
Back to all
Improved Aesthetic Appeal
Rust staining and displaced masonry around failing shelf angles are highly visible. Properly completed shelf angle replacement restores a clean, consistent facade. Our masonry cleaning and concrete coating services can take the result even further.
Back to all
Compliance with Building Codes
Chicago building codes require that facade elements be structurally sound. Shelf angle failures can trigger violations and mandatory remediation orders.
Back to all
Frequently Asked Questions
How do I know if my shelf angles need to be replaced?
Common signs include rust staining on the facade, horizontal cracking at floor lines, displaced masonry units, and spalling near the base of masonry courses. Contact us to schedule a professional assessment.
How often do shelf angles need to be replaced?
Many buildings from the mid-20th century are now reaching the point where original shelf angles are failing. A proactive inspection program is the best way to catch problems early.
What other facade services do you offer?
Tuckpointing, brick repair, limestone repair, concrete facade repair, window glazing, caulking, masonry cleaning, flashing systems, shelf angle replacements, and concrete coatings. View all services.
